WBi 40 kW Solid Fuel Biomass Central Heating Boiler

WBI boilers bridge gap between multi fuel burning capability of solid fuel burners and an automatic technology of wood pellet type machines.

Fan assisted air injected multi fuel wood, coal and light waste boiler.

These boilers range with output from 9kW to 50kW

Based loosely on the well established and provenWB boilerchassis, theWBI rangeofmulti fuelboilersmakes most of multi fuel capability by introducing computer controlled fan assistanceto aid burn process.

Combine this with class leadingfirebox sizes a refill times of around 10-14 hrs are achievable. For fire box sizes please see the spec chart as sizes vary withboileroutputs.

Theselog boilerscan be used toburn wood, logs, timber, coal, peat, garden waste, light domestic wasteand othercombustible solid fuels.

Theheatgenerated byburningfuel is used toheat up water circulatingaround thefirebox,grate and exhaust channelsheat exchanger, the water is thencirculatedaround thecentral heatingandhot water cylinder or buffer tank.

TheWBI series multi fuel boilershaveincineratorlike characteristics, produce vast amounts ofheatfromburning solid fuels.

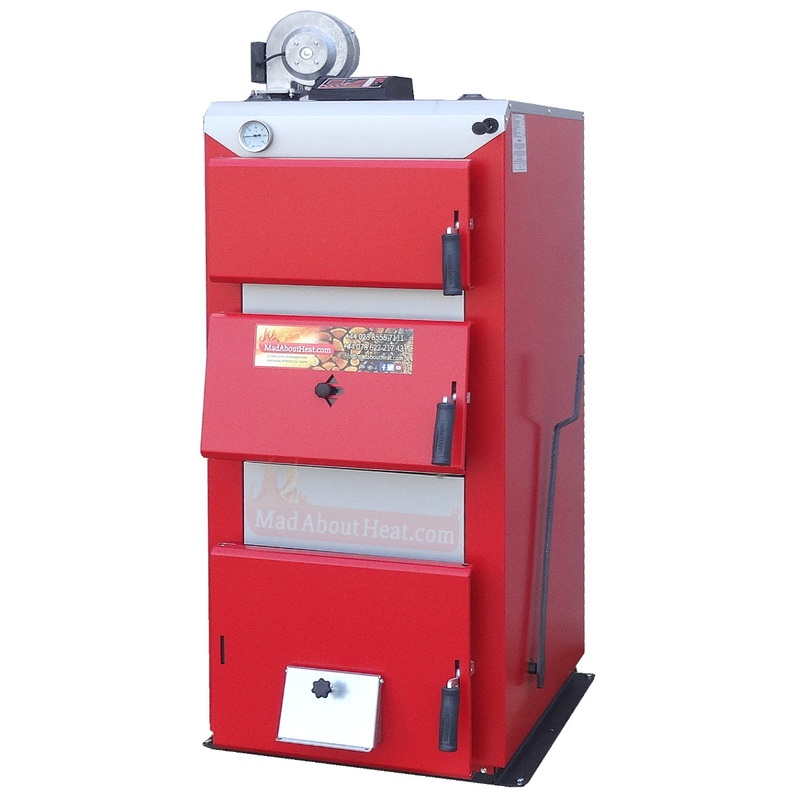

Taking a look at the machine itself:

On top of thismulti fuelburneris the controller. Equipped with latestintelligent algorithms, they require very little input once programmed, with the initial programming taking no more than 1 minute they can differentiate between various power demands to keep hot water supply temperature curve, flat.

Looking at the front, top opening has maintenance access for cleaning out theheat exchanger channels,cleaning equipmentdevicesareincluded. This task takes 3-4 minutes every 3-6 weeks.

Middle door is used forloading of fuel.

Bottom door, gives access to lighting of fuel,cleaning and ash emptying. Ash emptying is typically every 1-3 weeks depending on the fuel.

The fumes exit through the opening at the rear with a further cleaning access panel located just below that.

Multiple pump control capability.

The WBIburning direction of fuel is from bottom up, but always light from top.

Our range ofmulti fuel boilersare not to be confused with inferior units made out of sheet metal. Ourboilersaresolid, well made, intelligently engineeredand constructed out of 5-6 mm purpose made steel, then laser cut with their mass being in the region of between 300-550 kg.

Engineered to last!

Ideal for allcentral heating applicationsventedorpressurisedsealed systems and burning of mostsolid fuels.

Relevant European approval.

In stock and available for immediate delivery!

As with the rest of our items this wood boiler is a 100 % European product.

If you have any questions regarding this or any other product, please get in touch. Details are on ‘Contact us’ page.

WBi Boilers Spec

Unit

Model

9

12

16

18

20

24

30

35

40

50

Dimensions

A

[mm]

250

290

340

450

560

B

[mm]

290

320

390

420

490

570

C

[mm]

340

325

390

380

340

365

425

525

725

D

[mm]

127

159

178

219

E

[mm]

248 173

298 198

348 248

L

[mm]

400

425

495

525

595

675

L1

[mm]

110

L2

[mm]

255

H

[mm]

1080

1115

1200

1205

1265

1335

1435

1635

1685

H1

[mm]

915

910

990

975

1035

1105

1205

1405

1435

H2

[mm]

210

235

S

[mm]

370

390

440

550

660

S1

[mm]

65

Primary fuel

Hard coal

Thermal power*

[kW]

9

12

16

18

20

24

30

35

40

50

Area of heated rooms**

[m]

100

140

180

200

220

260

320

370

420

530

Efficiency

[%]

80 – 90

Power control range

[%]

2

Capacity of combustion chamber

[dm]

20

27

33

33,5

45

53

80

110

150

210

Boiler water tank capacity

[dm]

28

38

52

55

70

75

96

102

110

130

Heat exchanger material

Steel P265GH [PN-EN 10028]; thickness 6 mm

Maximum working pressure

[bar]

2

Required min. chimney draught***

[Pa]

20

23

25

28

35

Min./max. water temperature

[C]

57/95

Weight of boiler without water

[kg]

148

181

202

214

248

253

320

352

382

520

Diameter of water connection

[cal]

G 1 1/2

Control

controllerSP-16 LOGIC

Additionally as astandard

set of cleaning tools
