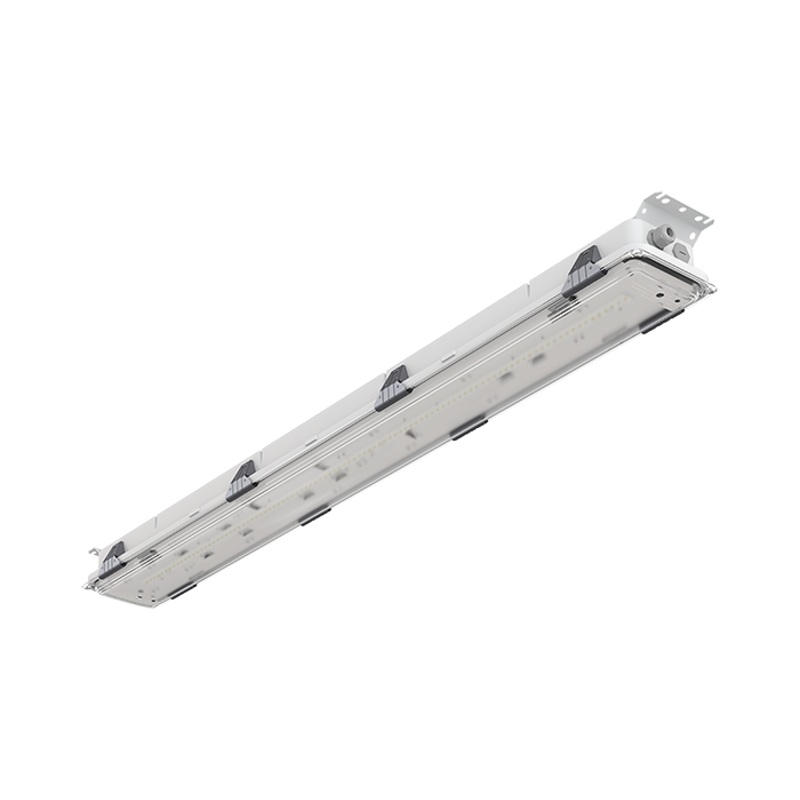

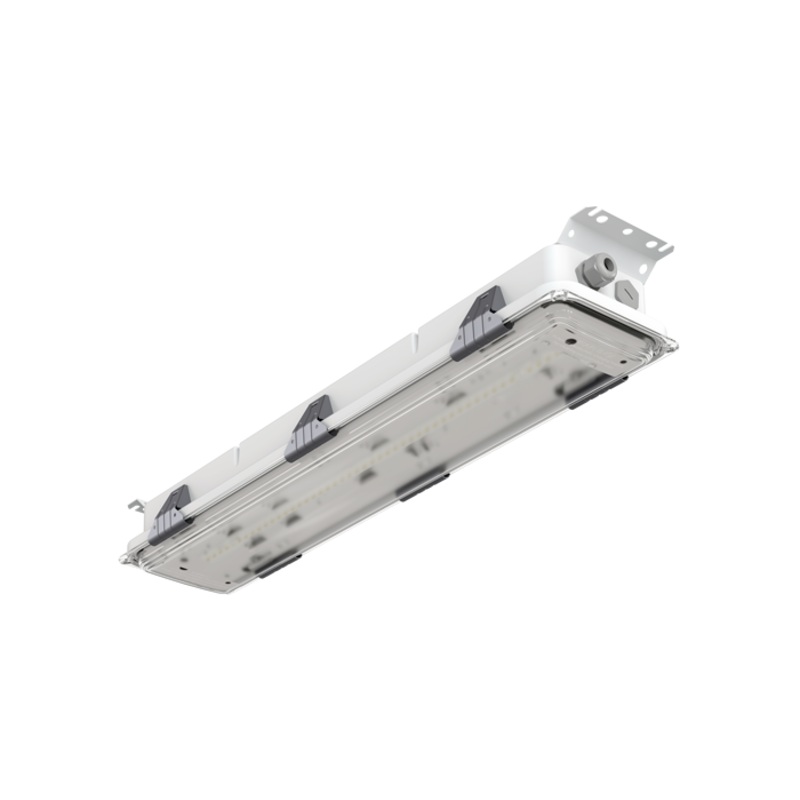

Technical linear light, type 1445 LED, Main body material type Aluminum/zinc-treated steel, IP class 66/67, Light source type LED. 1445 Z – Zink treated steel versions is ONLY for indoor use in non corrosive environment. The 1445 is ideal for workshops, stores, holds, passage ways etc.

Electrical Data

1. EMC Category
   EMC1 : EMC B IEC 60533 Bridge and Open deck
2. Minimum Voltage -10% (VAC)
   220
3. Maximum voltage +10% (VAC)
   240
4. Minimum frequency -5% (Hz)
   50
5. Maximum frequency +5% (Hz)
   60
6. Total consumption (W)
   38
7. Number of luminaires on a 10A MCB type B
   10
8. Number of luminaires on a 10A MCB type C
   16
9. Number of luminaires on a 16A MCB type B
   16
10. Number of luminaires on a 16A MCB type C
    26

Technical Data

1. Minimum ambient temperature (C)
   -20
2. Maximum ambient temperature (C)
   50
3. IK classification
   10
4. IP classification
   66/67

Driver / Ballast

1. Type of LED Driver
   HF: Non dimmable
2. Number of Driver
   1

Housing

1. Main body material
   Aluminium/ zinc-treated steel
2. Surface treatment
   Zinc coated
3. Body colour
   WH – White
4. Main body colour name
   Traffic white
5. Main body colour surface
   Powder coated
6. Main body colour RAL code
   RAL 9016

Termination

1. Termination
   3×6 Screw Terminal
2. Maximum core diameter
   6 mm2
3. Minimum core diameter
   0.5 mm2
4. Type of through wiring
   3×2.5

Optic

1. Material of diffuser
   Polycarbonate

Certificates

1. Certification
   5 year warranty,DNV
2. Marine Approved
   Yes
3. EX zone
   No Ex

Light Technical Data

1. Light source
   LED
2. Lumen out (lm)
   4,995
3. Number of lamps
   2
4. Lumen value supplied light source (lm)
   4,500
5. Power consumption light source (W)
   38
6. Lumen per Watt (lm/W)
   131
7. Lamp colour temp (K)
   4000
8. Lamp colour temp (K)
   4000
9. CRI Colour rendering index
   >80
10. Light source included
    Yes

Lifetime

1. L70 Median useful life LED Ta45 (hr)
   50 000

Dimensions

1. Length (mm)
   1,340
2. Width (mm)
   145
3. Height (mm)
   109
4. Net weight (kg)
   6.00

Cable Inlet

1. Cable gland
   M20-Polyamide
2. Number of cable glands
   2
3. Blind plugs
   Grommet
4. Number of blind plugs
   2
5. Max cable diameter (mm)
   14
6. Min cable diameter (mm)
   8

Logistic Data

1. Item gross weight (kg)
   6.52
